UI 布局-概述


Vaadin 提供的 UI 组件大体可以分为两类,一类为之前介绍的 UI 组件主要和用户交互。另外一类为布局类,主要目的是用来管理用户界面中所放置的UI组件的大小和位置。 在创建 Window 对象时,如果你不想使用缺省的布局,可以着手创建根布局对象,如下例:

// Create the main window.
Window main = new Window("My Application");
setMainWindow(main);

// Set the root layout (VerticalLayout is actually the default).
VerticalLayout root = new VerticalLayout();
main.setContent(root);

// Add the topmost component.
root.addComponent(new Label("The Ultimate Cat Finder"));

// Add a horizontal layout for the bottom part.
HorizontalLayout bottom = new HorizontalLayout();
root.addComponent(bottom);

bottom.addComponent(new Tree("Major Planets and Their Moons"));
bottom.addComponent(new Panel());
...

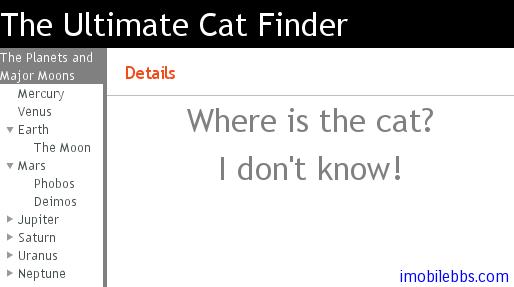

在创建好 Layout 对象后,通常还需要对布局对象进行调整,比如大小,对齐方式,间隔等等。 此外布局的使用和用户界面的主题关系密切,比如背景,边界类型,文字对齐等。这些在后面都有详细介绍。 比如使用上面代码创建的一个界面显示如下:

Vaadin 应用创建用户界面除了使用 Java 代码外,Vaadin 提供了 Eclipse IDE 的一个插件,可以通过拖动 UI 组件的方式帮助开发人员设计用户界面。详见后文。
